• (4) air registers w/positive shut-off
• Ashtray & cigar lighter
• Auxiliary pwr point
• Color-keyed cloth headliner
• Color-keyed scuff plates
• Dash-top tray
• Driver & passenger grab handles
• Dual color-keyed coat hooks
• Front door operated dome lamp w/time delay off & IP switch
• Front passenger-side roof ride handle
• Front/rear map lamps
• Glove box
• Rear seat LH/RH grab handles
• Rear seating roof ride handles
• Turbo boost gauge & air filter minder

• (2) front tow hooks
• 135-amp HD alternator
• 172" WB
• 19.5" forged polished aluminum wheels w/bright center ornaments
• 225/70R19.5G all-season BSW tires
• 4-wheel anti-lock braking system (ABS)
• 4-wheel drive
• 4.30 axle ratio
• 6-ton hydraulic jack
• 8' pickup box-inc: (6) tie-down hooks, partitionable & stackable storage
• Class V trailer hitch receiver-inc: 2.5" hitch w/2" adapter
• Dual 78 amp/hr (750 CCA)battery
• Front/rear stabilizer bars
• Full-size spare tire w/lock & carrier
• HD gas shock absorbers
• Limited slip rear axle
• Mono-beam front axle w/coil spring suspension
• Pwr 4-wheel disc brakes w/hydro-boost
• Pwr steering w/steering damper
• Rear auxiliary springs
• TowCommand integrated trailer brake controller *REQ: electric brakes*
• Trailer tow pkg-inc: 7-wire harness w/relays, 7/4 pin combination connector
• Transfer case w/manual locking front hubs

• 4-wheel anti-lock braking system (ABS)
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Child seat tethers on all rear passenger seats
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• Driver & front passenger airbags

Additional Packages

• Safety@4-Wheel Anti-Lock Braking System (Abs)
• Safety@Beltminder Seatbelt-Not-Buckled Chime & Flashing Warning Light
• Safety@Child Seat Tethers On All Rear Passenger Seats
• Safety@Color-Keyed Safety Belts W/Front Seat Outboard Height Adjustable D-Rings
• Safety@Driver & Front Passenger Airbags

• Limited Slip w/4.30 Rear Axle Ratio
• GVWR: 14
• 500 lbs Payload Package
• 19.5" Forged Polished Aluminum Wheels
• Premium ETR AM/FM Stereo w/Single CD
• Dual rear wheels
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Rear step bumper
• Rear reading lights
• Rear anti-roll bar
• Power steering
• Passenger vanity mirror
• Front reading lights
• Front anti-roll bar
• Dual front impact airbags
• Alloy wheels
• AM/FM radio
• ABS brakes
• Voltmeter
• Tachometer
• 4-Wheel Disc Brakes
• Turbocharged
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Tow Hooks
• Tires - Front All-Season
• Tires - Rear All-Season
• Aluminum Wheels
• Conventional Spare Tire
• Power Steering
• 4-Wheel Disc Brakes
• Running Boards/Side Steps
• Power Windows
• Intermittent Wipers
• Leather Seats
• Automatic Headlights
• Woodgrain Interior Trim
• Trip Computer
• AM/FM Stereo
• Power Outlet
• Front Reading Lamps
• Rear Reading Lamps
• Passenger Vanity Mirror
• Driver Air Bag
• Passenger Air Bag

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): Dual 160
• Maximum Alternator Capacity (amps): 200
• Maximum Alternator Capacity (amps): HD 200
• Maximum Alternator Capacity (amps): HD 135
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 6000
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 6000
• Curb Weight - Front (lbs): 5056
• Curb Weight - Rear (lbs): 3631
• Gross Vehicle Weight Rating Cap (lbs): 14500
• Gross Combined Wt Rating (lbs): 33000
• Gross Combined Wt Rating (lbs): 28000
• Gross Combined Wt Rating (lbs): 27000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2400
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 20100
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 19100
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 24100
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18100
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5025
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4775
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 6025
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4525
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: - TBD -
• Spring Capacity - Front (lbs): 6500
• Spring Capacity - Front (lbs): 7000
• Spring Capacity - Front (lbs): 6000
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Dana Super 60 Monobeam
• Axle Type - Rear: Dana Full-Floating
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 11000
• Axle Ratio (:1) - Front: 4.88
• Axle Ratio (:1) - Front: 4.30
• Axle Ratio (:1) - Rear: 4.88
• Axle Ratio (:1) - Rear: 4.30
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.53 x 0.47
• Rear Brake Rotor Diam x Thickness (in): 15.35 x 0.47
• Tires
• Front Tire Order Code: THB
• Front Tire Order Code: TFB
• Rear Tire Order Code: THB
• Rear Tire Order Code: TFB
• Spare Tire Order Code: - TBD -
• Front Tire Size: 225/70R19.5G
• Rear Tire Size: 225/70R19.5G
• Spare Tire Size: - TBD -
• Front Tire Capacity (lbs): 3415
• Rear Tire Capacity (lbs): 3415
• Spare Tire Capacity (lbs): 3415
• Revolutions/Mile @ 45 mph - Front: 654
• Revolutions/Mile @ 45 mph - Front: 646
• Revolutions/Mile @ 45 mph - Rear: 654
• Revolutions/Mile @ 45 mph - Rear: 646
• Revolutions/Mile @ 45 mph - Spare: 654
• Revolutions/Mile @ 45 mph - Spare: 643
• Wheels
• Front Wheel Size (in): 19.5 x 6.0
• Rear Wheel Size (in): 19.5 x 6.0
• Spare Wheel Size (in): - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 18.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 49.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 38
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 172.4
• Length, Overall w/o rear bumper (in): 262.4
• Width, Max w/o mirrors (in): 95.5
• Height, Overall (in): - TBD -
• Height, Overall (in): 79.8
• Overhang, Front (in): 37.6
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 154.3
• Cab to Axle (in): 56.3
• Cab to End of Frame (in): 96.6
• Ground to Top of Load Floor (in): 35.6
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 36.5
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 7.8
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.0
• Cargo Box Width @ Top, Rear (in): 63.6
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 77.4
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Capacity: 6
• Front Head Room (in): - TBD -
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Second Head Room (in): - TBD -
• Second Leg Room (in): - TBD -
• Second Shoulder Room (in): - TBD -
• Second Hip Room (in): - TBD -
• Summary

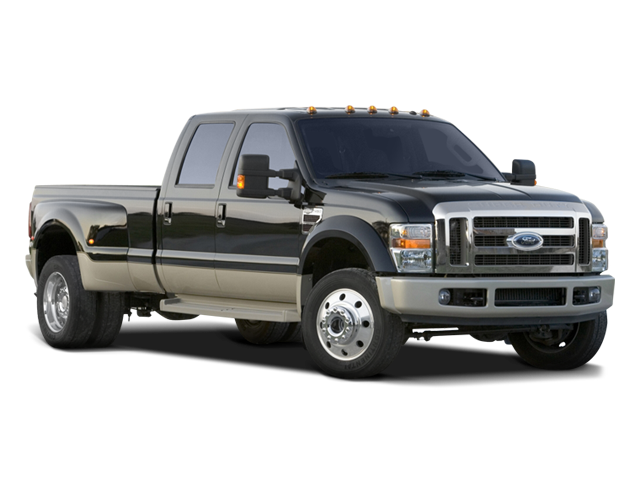

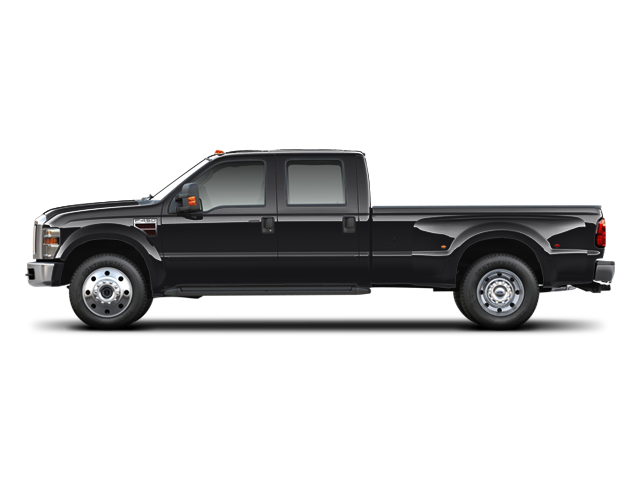

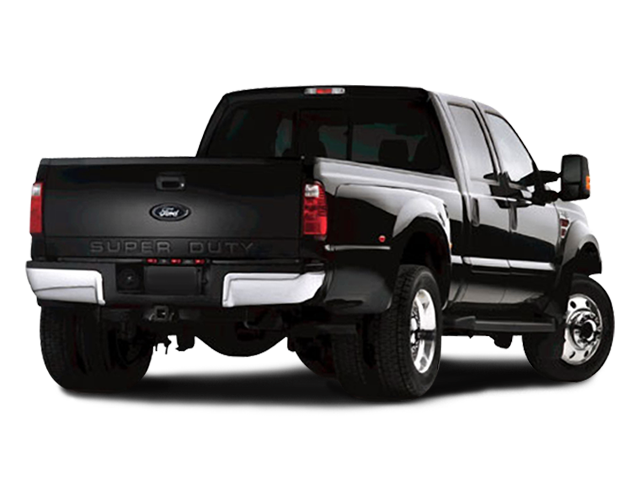

• Vehicle Name: Ford Super Duty F-450 DRW
• Body Style: Crew Cab 8'
• Body Code: 172" WB
